Asset Investment Planning: From Asset Data to Decisions

When council asks why a budget request is what it is, many asset managers answer with a spreadsheet, past experience, and professional judgment. That answer is hard to defend, because nobody can show how the number was built.

Direxyon Enterprise replaces it with an asset investment planning model: every asset, how it deteriorates, what each intervention costs and restores, and what a failure would mean. Every figure in the plan can be traced back to that model.

One logic for every asset class

Roads, sewers, watermains, and buildings are usually managed in separate systems, each with its own logic. That makes it difficult to compare a pipe and a roof as uses of the next dollar, because there is no common scale to weigh them.

In Direxyon, every asset class runs through the same framework. A road, a sewer segment, a pumping station, and a bus all have a condition, a deterioration rate, intervention costs, and a consequence of failure. Only the parameters change.

Assets are organized in a hierarchy, from the portfolio down to networks, assets, and components; assets can also be grouped by district or corridor. The same model reports network condition to council and component-level risk to engineers. It also coordinates work on connected assets: when the watermain under a street is modelled with the pavement above it, you stop resurfacing roads three years before digging them up.

Five concepts that structure the model

Most disagreements about an investment plan come down to one of these five concepts. Direxyon models each one explicitly, so the disagreement rests on stated assumptions rather than impressions.

Condition

The asset’s current state. Roads typically use the Pavement Condition Index (PCI), from 0 to 100; pipes and most other assets use graded scales from Very poor to Very good. Your existing inspection programs, from pavement surveys to sewer camera inspections, feed the model directly. Because these scales differ, sometimes even in direction, Direxyon brings the scores together into one consistent view of the portfolio.

Degradation

How condition declines when nothing is done. Many assets, linear assets in particular, hold up early in life, then decline faster near the end, so the timing of an intervention matters as much as the intervention itself. Direxyon uses a curve suited to each asset: gradual decline for pavement, grade-by-grade decline for pipes, and a break rate projected from break history for buried assets that are difficult to inspect. Each service life starts from a reference value for the material and is adjusted for traffic, freeze-thaw cycles, and soil conditions.

Interventions and costs

What each treatment costs and what it restores. Every intervention, from preservation to replacement, has a unit cost and an effect on condition or remaining life. That is what links a budget to a result: without it, the plan shows what to do, but not what the money buys.

Level of service

The level of service is the quality the organization commits to deliver to users. It has two layers: what users experience, such as service interruptions, sewer backups, or ride comfort, and the technical indicators behind it, such as average condition or the share of the network in poor condition. Engineers set a PCI target; council asks what residents will notice and what it will cost. The model links the technical target to the service delivered and to the budget it requires, so each level of service can be weighed against its cost.

Criticality

How much a failure matters. A bridge on the only road into an industrial park is a higher priority than one with a two-minute detour, even in the same condition. Direxyon combines criticality with the likelihood of failure to calculate risk, and uses risk, not condition alone, to set priorities when the budget cannot cover every need.

Start with the data you have

Incomplete data is the reason most often given for delaying asset investment planning. Inventories are partial, inspections are uneven, construction years are missing, and records are spread across a GIS, a maintenance system, consultant reports, and filing cabinets. This is normal in the sector.

Direxyon is built for it. Every estimate in the model stays traceable, and Monte Carlo simulation quantifies how much uncertainty it carries into the result. You do not need a complete inventory to start; you improve the data over time, starting where better data would change a decision.

Turn staff judgment into explicit rules

Your most experienced staff already know which treatment fits which asset. But that knowledge is applied by hand to a few hundred assets, is hard to audit, and leaves when they do.

In Direxyon Enterprise, it becomes a decision tree. Each simulated year, every asset is checked against intervention thresholds, and the first threshold crossed sets the action: preservation, rehabilitation, replacement, or no action. Critical assets are treated earlier than less critical ones in the same condition. The tree determines what each asset needs and when; when the budget cannot fund every need, risk and the value framework set which ones go first.

The rules are applied the same way across every asset in the portfolio, can be audited when a plan is challenged, and when a rule changes, the effect shows everywhere at the next run. The rules belong to the organization, not to the software: each model is configured to your own assets, financial rules, and decision rules.

Test scenarios before committing a budget

A single plan cannot answer the questions council actually asks. What happens to the sewer network if the budget grows 2% a year instead of 4%? What if arterial roads get a higher level of service?

Direxyon answers each question as a scenario: a set of assumptions, with its own objective, budget, and thresholds, that the simulation projects across the whole portfolio.

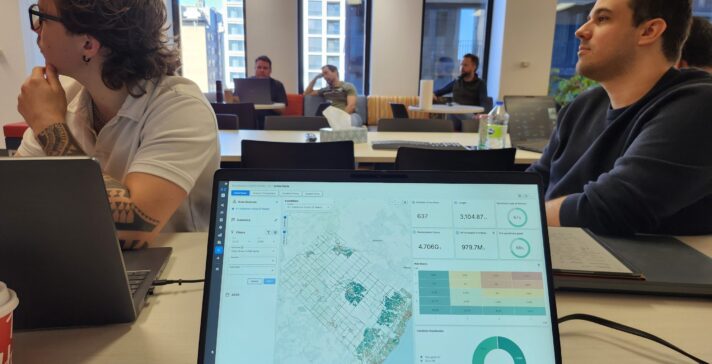

Every scenario uses the same asset model, so the only thing that changes is the strategy being tested. That makes the comparison valid. Comparing each option with a reference scenario, such as the current budget, shows what a lower amount would cost in deferred maintenance backlog and added risk: the answer to the question council started with. Results appear in dashboards configured around the indicators you report on.

From scenario to a defensible project list

A scenario produces interventions asset by asset. A capital program needs projects that can be budgeted, tendered, and delivered.

Direxyon bundles interventions into real projects, such as a pipe, the road above it, and the sidewalk beside it on the same street. Projects are then ranked against a value framework that reflects your objectives: service quality, safety, environmental and social outcomes, economic return, and strategic commitments, weighed against cost and risk. The result is an order of work you can defend, built on the documented decision criteria that ISO 55001 asks organizations to establish, with a clear line of sight to organizational objectives, which many capital plans struggle to show.

What you need to start

An inventory, a reasonable view of condition for part of it, an honest record of what you do not know, and clear objectives. A first version, built only on the data you already have, can give your team its first complete view of the portfolio.

Book a demo to see what Direxyon Enterprise makes of your own asset data, or get in touch with questions first.
